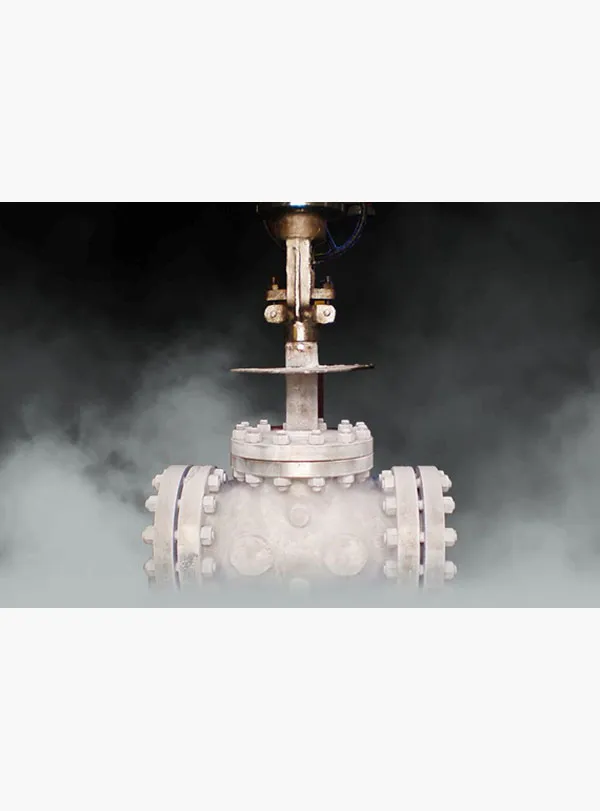

Cryogenic Valve
FKV cryogenic valves include gate valves, globe valves, check valves, butterfly valve, and ball valves, with the design selected based on the operating temperature of the application.
The valve bodies are manufactured from a wide range of stainless steel and alloy materials, ensuring safe and reliable performance under extreme low-temperature conditions.
Design and manufacturing comply with international standards, including API 600, API 623, BS 1868, BS 6364, MSS SP-134, API 608, API 6D, and ASME B16.34, guaranteeing quality, safety, and operational reliability in cryogenic applications.
Additional information
| Size/Rating | NPS 1/2~24 / CLASS 150~2500 |
|---|---|
| Body Materials | Stainless Steel, Low-Temperature alloy Steel |
| End | Flange/Weld/Thread/Socket |
| Basic Design | API 6D/ISO 14313, API 608, API 600, API 623, API 602, BS 6364, BS 5351, ISO 17292 |
| Face to Face/End to End | ASME B16.10 |
| End Dimension | ASME B16.5, MSS SP-44, ASME B16.25 |
| Test & Inspection | API 598, BS6364 |
