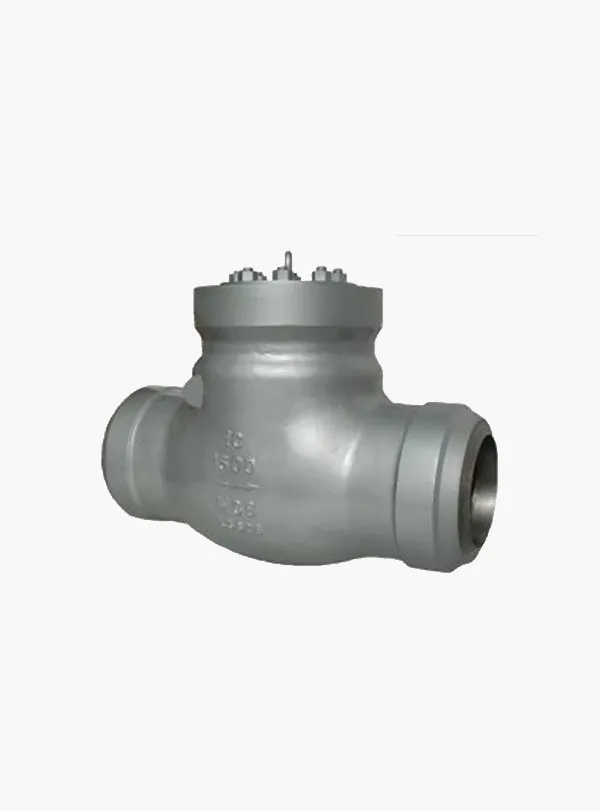

Pressure Seal Valve
FKV pressure seal valves are designed for high-pressure and high-temperature applications, providing reliable sealing and long-term operational performance.
These valves are available in gate, globe, and check designs and are manufactured from a wide range of materials, including carbon steel, stainless steel, duplex stainless steel, alloy steel, and other special materials, ensuring durability and suitability for demanding process conditions.
FKV pressure seal valves are engineered and produced in accordance with API 600, API 602, API 603, and ASME B16.34 standards, guaranteeing compliance with international specifications and safe operation under extreme conditions.
Additional information
| Size/Rating | NPS 2~48 / CLASS 600~ 2500 |
|---|---|
| Body Materials | Carbon Steel, Alloy Steel |
| Trim | Per API 600 |
| End | Flange/Weld |
| Basic Design | API 600, ASME B16.34, MSS SP-144 |
| Face to Face/End to End | ASME B16.10 |
| End Dimension | ASME B16.5, MSS SP-44/ASME B16.47, ASME B16.25, EN 1092 |
| Test & Inspection | API 598 |
